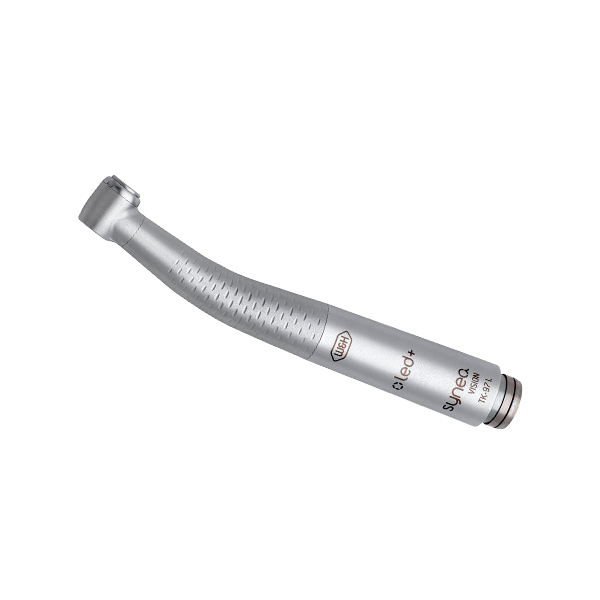

TK-97 L Synea Vision turbine

Description

TK-97 L Synea Vision turbine

Ring LED+, ceramic ball bearings,
coupling system Roto Quick

Ring LED+,
5x spray,
Head size Ø 10 mm,
21 W*, 400,000 rpm,
FG burs Ø 1.6 mm for bur lengths up to 21 mm

Discover the Synea Vision line – the turbine range for all treatment scenarios!

100% shadowless illumination of the
treatment site with the Ring LED+
(with the Roto Quick system only)
Optimal power
Optimum cooling of the treatment site
with 5x spray
Four head sizes for every application case
Hygienic head system
Scratch-resistant surface improves aesthetics even more – and extends their life
Fatigue-free work
Optimum service life and unexpected quietness during operation with ceramic ball bearings
Thermo washer disinfectable and sterilizable
24 months warranty

Specifications

Synea Vision

Types:	TK-94 L / TK-94 LM	TK-97 L / TK-97 LM	TK-98 L / TK-98 LM	TK-100 L / TK-100 LM
Light:	LED + / compact glass rod	Ring LED + / compact glass rod	Ring LED + / compact glass rod	Ring LED + / compact glass rod
Coupling:	W&H Roto Quick / Multiflex®**	W&H Roto Quick / Multiflex®**	W&H Roto Quick / Multiflex®**	W&H Roto Quick / Multiflex®**
Head size:	Ø 9 mm	Ø 10 mm	Ø 11.5 mm	Ø 13 mm
Head height:	17.2 mm (with bur 16 mm)	21.1 (with bur 19 mm)	21.4 (with bur 19 mm)	21.4 (with bur 19 mm)
Power:	14 W*	21 W*	24 W*	26 W*
Speed:	410,000 rpm	400,000 rpm	360,000 rpm	330,000 rpm
FG bur Ø 1.6 Max. operating part diameter: Max. length:	1.5 mm 16 mm	2 mm 21 mm	2 mm 25 mm	2.5 mm 25 mm
Operating pressure Roto Quick connection: Operating pressure Multiflex®** connection:	3 ± 0.3 bar 2.5 – 4 bar	3 ± 0.3 bar 2.5 – 4 bar	3 ± 0.3 bar 2.5 – 4 bar	3 ± 0.3 bar 2.5 – 4 bar
Spray:	5-fold	5-fold	5-fold	5-fold
